VOSS Pack


Make directory called voss in /opt/stackstorm/packs…

mkdir voss

Change location to voss folder…

cd voss

Copy the following files to the folder: icon.png (Extreme Networks logo); pack.yaml; config.schema.yaml

Create sub-folder actions and copy the following files there: cmd.yaml; cmd.py (Python script)

Copy voss.yaml file to /opt/stackstorm/configs folder.

Note: Take care with indentation, whitespace characters and syntax when creating script and yaml files to avoid wasting time troubleshooting when installing packs.

Installing new voss pack…

git init && git add ./* && git commit -m “Initial commit”
st2 pack install file:///$PWD

Note: If something fails worth checking the file attributes allow access. Add permissions with sudo chmod 777 . -R.

Note: Can remove .git folder with sudo rm -r .git if need to rebuild by doing another git.

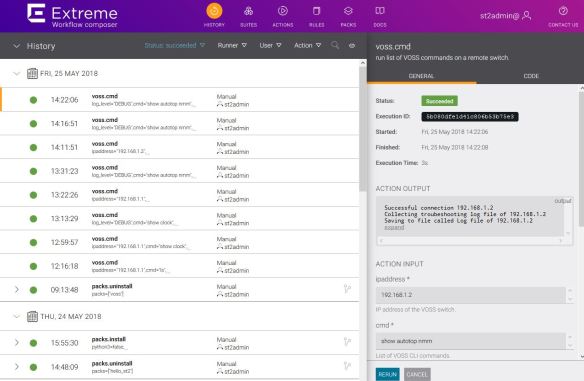

Execute Action (voss.cmd) which allows you to enter IP address of the switch and the command to use. For example, enter IP 192.168.1.2 (core switch 2) and pass command show autotop nmm will initiate SSH connection run the command and save the output to a file before closing the SSH session.

cat ‘Log file of 192.168.1.2’

Using security software from Mocana Corporation. Please visit https://www.mocana.com/ for more information

Copyright(c) 2010-2018 Extreme Networks.
All Rights Reserved.
VSP Simulator: Virtual Services Platform  8200
VSP Operating System Software Build 7.0.0.0_B885
Unsupported Software, Internal Use Only

This product is protected by one or more US patents listed at http://www.extremenetworks.com/patents along with their foreign counterparts.

EXTREME NETWORKS VOSS COMMAND LINE INTERFACE

core2:1>show autotop nmm
==========================================================================================
Topology Table
==========================================================================================
Local                                                                              Rem
Port     IpAddress       SegmentId MacAddress   ChassisType            BT LS  CS   Port
——————————————————————————————
0/0      192.168.1.2     0x000000  005100f92800 VSP8284XSQ             12 Yes HtBt  0/0
1/1      10.0.0.43       0x000101  005100eb2800 VSP8284XSQ             12 Yes HtBt  1/1
1/1      192.168.1.5     0x000107  703018a4e101 ERS3510GT              12 Yes HtBt  1/7
1/8      10.0.0.43       0x000108  005100eb2807 VSP8284XSQ             12 Yes HtBt  1/8

*******************************

Pack

pack.yaml


ref: voss
name: VOSS
description: Actions for managing Extreme Networks EXOS devices
keywords:
– voss
version: 0.0.2
author: Extreme Networks
email: support@extremenetworks.com

config.schema.yaml


username:
description: “Login username”
type: “string”
required: true
default: “rwa”
password:
description: “Login password”
type: “string”
required: true
default: “rwa”

Actions

cmd.yaml


name: “cmd”
runner_type: “python-script”
description: “run list of VOSS commands on a remote switch.”
enabled: true
entry_point: “cmd.py”
parameters:
ipaddress:
type: “string”
description: “IP address of the VOSS switch.”
required: true
position: 0
cmd:
type: “string”
description: “List of VOSS CLI commands.”
required: true
position: 1

cmd.py

from st2common.runners.base_action import Action
import paramiko

class VOSSCmd(Action):

def run(self, ipaddress=’192.168.1.1′, cmd=”):
“””
Run a VOSS command on the remote switch

Args:
– ipaddress: The IP address of the switch
– username: login user name
– password: login password
– cmd: either a single EXOS command or list of VOSS commands

Raises:
– ValueError: On switch reponse being invalid
– RuntimeError: if switch cannot process the command

Returns:
dict: with VOSS CLI results
“””

username=’rwa’
password=’rwa’

ssh_client = paramiko.SSHClient()
ssh_client.set_missing_host_key_policy(paramiko.AutoAddPolicy())
ssh_client.connect(hostname=ipaddress,username=username,password=password)

print ‘Successful connection’, ipaddress

remote_connection = ssh_client.invoke_shell()

print ‘Collecting troubeshooting log file of ‘ + ipaddress

remote_connection.send(cmd)
remote_connection.send(‘\n’)

readoutput = remote_connection.recv(655350)

saveoutput = open(‘Log file of ‘ + ipaddress, ‘w’)

print ‘Saving to file called Log file of ‘ + ipaddress + ‘\n’

saveoutput.write(readoutput)
saveoutput.write(‘\n’)
saveoutput.close

ssh_client.close()



Configs

voss.yaml


username: “rwa”
password: “rwa”

Note: If pack or config files change rerun one of the following:

st2ctl reload –register-actions

st2ctl reload –register-configs

Note: Locate the output file with following command syntax…

find / -name ‘Log file of 192.168.1.1’ 2>/dev/null

Create Pack

icon

(icon.png)

https://github.com/StackStorm/st2/tree/master/contrib/hello_st2

https://docs.stackstorm.com/reference/packs.html

Create the pack folder structure and related files. Let’s keep the metadata files such as pack.yaml, config.schema.yaml, and requirements.txt empty for now:

# Use the name of the pack for the folder name.
mkdir hello_st2
cd hello_st2
mkdir actions
mkdir rules
mkdir sensors
mkdir aliases
mkdir policies
touch pack.yaml
touch requirements.txt

Note: All folders are optional. It is safe to skip a folder or keep it empty. Only create the config.schema.yaml file if it is required. An empty schema file is not valid.

Create the pack definition file, pack.yaml:

sudo chmod 777 pack.yaml





ref: hello_st2
name: Hello StackStorm
description: Simple pack containing examples of sensor, rule, and action.
keywords:
– example
– test
version: 0.1.0
author: StackStorm, Inc.
email: info@stackstorm.com

Create the action. An action consists of meta data, and entrypoint. The following example simply echoes a greeting.

Copy the following content to actions/greet.yaml:


name: greet
pack: hello_st2
runner_type: “local-shell-cmd”
description: Greet StackStorm!
enabled: true
entry_point: greet.sh
parameters:
greeting:
type: string
description: Greeting you want to say to StackStorm (i.e. Hello, Hi, Yo, etc.)
required: true
position: 1

Copy the following content to actions/greet.sh:

#!/bin/bash
echo $1, StackStorm!”

Create a sensor. The sample sensor below publishes an event to StackStorm every 60 seconds.

Copy the following content to sensors/sensor1.yaml:


class_name: “HelloSensor”
entry_point: “sensor1.py”
description: “Test sensor that emits triggers.”
trigger_types:

name: “event1”
description: “An example trigger.”
payload_schema:
type: “object”

Copy the following content to sensors/sensor1.py:

import eventlet

from st2reactor.sensor.base import Sensor

class HelloSensor(Sensor):
def __init__(self, sensor_service, config):
super(HelloSensor, self).__init__(sensor_service=sensor_service, config=config)
self._logger = self.sensor_service.get_logger(name=self.__class__.__name__)
self._stop = False

def setup(self):
pass

def run(self):
while not self._stop:
self._logger.debug(‘HelloSensor dispatching trigger…’)
count = self.sensor_service.get_value(‘hello_st2.count’) or 0
payload = {‘greeting’: ‘Yo, StackStorm!’, ‘count’: int(count) + 1}
self.sensor_service.dispatch(trigger=‘hello_st2.event1’, payload=payload)
self.sensor_service.set_value(‘hello_st2.count’, payload[‘count’])
eventlet.sleep(60)

def cleanup(self):
self._stop = True

# Methods required for programmable sensors.
def add_trigger(self, trigger):
pass

def update_trigger(self, trigger):
pass

def remove_trigger(self, trigger):
pass

Create a rule. The sample rule below is triggered by an event from the sensor and invokes the action from the samples above.

Copy the following content to rules/rule1.yaml:


name: on_hello_event1
pack: hello_st2
description: Sample rule firing on hello_st2.event1.
enabled: true
trigger:
type: hello_st2.event1
action:
ref: hello_st2.greet
parameters:
greeting: Yo

Create an action alias. The sample action alias below aliases the greet action and makes it accessible from ChatOps.

Copy the following content to aliases/alias1.yaml:


name: greet
pack: hello_st2
description: “Greet StackStorm”
action_ref: “hello_st2.greet”
formats:
“greet {{greeting}}”

Create a policy. The sample policy below limits concurrent operation of the greet action.

Copy the following content to policies/policy1.yaml:


name: greet.concurrency
pack: hello_st2
description: Limits the concurrent executions of the greet action.
enabled: true
resource_ref: hello_st2.greet
policy_type: action.concurrency
parameters:
threshold: 10

Install the pack. We encourage using git. If you do so, st2 pack will greatly simplify your pack management. Of course, you can define your own tools and workflow for editing and versioning packs. You’ll need to place the files in /opt/stackstorm/packs and [re-]load the content.

Use git and pack install (recommended):

# Get the code under git
cd hello_st2
git init && git add ./* && git commit -m “Initial commit”
# Install from local git repo
st2 pack install file:///$PWD

Initialised empty Git repository in /opt/stackstorm/packs/hello_st2/.git/

*** Please tell me who you are.

Run

git config –global user.email “you@example.com”
git config –global user.name “Your Name”

to set your account’s default identity.
Omit –global to set the identity only in this repository.

st2 execution list

EXOS Pack

# contents of a pack folder
actions/                 #
rules/                   #
sensors/                 #
aliases/                 #
policies/                #
tests/                   #
etc/                     # any additional things (e.g code generators, scripts…)
config.schema.yaml       # configuration schema
packname.yaml.example    # example of config, used in CI
pack.yaml                # pack definition file
requirements.txt         # requirements for Python packs
requirements-tests.txt   # requirements for python tests
icon.png                 # 64×64 .png icon

At the topmost level are the main folders actions, rules, sensors, aliases and policies, as well as some shared files:

  • pack.yaml – Metadata file that describes and identifies the folder as a pack.
  • config.schema.yaml – Schema that defines configuration elements used by a pack.
  • requirements.txt – File containing a list of Python dependencies. If your pack uses Python actions and/or sensors, you can specify any Python libraries you need here. They will automatically be installed in a pack-specific virtualenv when you install the pack.

Configuration Schema

The configuration schema is a YAML formatted file which defines the schema for that pack’s configuration file. This schema is written by the pack author and contains information about every available configuration item (name, type, is value a secret, etc). The file is named config.schema.yaml and is located in the root of the pack directory (/opt/stackstorm/packs/<mypack>/).

/opt/stackstorm/packs/exos

config.schema.yaml


username:
description: “Login username”
type: “string”
required: true
default: “admin”
password:
description: “Login password”
type: “string”
required: true
default: “”

pack.yaml


ref: exos
name: EXOS
description: Actions for managing Extreme Networks EXOS devices
keywords:
– exos
– extreme
– networking
version: 0.0.2
author: Extreme Networks
email: support@extremenetworks.com

Configuration File

The configuration file is a YAML formatted file which contains site-specific configuration values. This file can contain ‘static’ or ‘dynamic’ values. The configuration file is named <pack name>.yaml and located in the /opt/stackstorm/configs/ directory. File ownership should be st2:st2.

For example, for a pack named libcloud, the configuration file is located at /opt/stackstorm/configs/libcloud.yaml.

/opt/stackstorm/packs/exos

exos.yaml.example


username: “admin”
password: “SuperSecret”

/opt/stackstorm/configs

exos.yaml

username: admin

Note : When modifying the configuration in /opt/stackstorm/configs/ please remember to tell StackStorm to load these new values by running st2ctl reload --register-configs

Actions

# contents of actions/
actions/
lib/
action1.yaml
action1.py
action2.yaml
action1.sh
workflow1.yaml
workflow2.yaml
workflows/
workflow1.yaml
workflow2.yaml

cmd.yaml


name: “cmd”
runner_type: “python-script”
description: “run list of EXOS commands on a remote switch.”
enabled: true
entry_point: “cmd.py”
parameters:
ipaddress:
type: “string”
description: “IP address of the EXOS switch.”
required: true
position: 0
cmd:
type: “string”
description: “List of EXOS CLI commands.”
required: true
position: 1

cmd.py

import sys
from lib.jsonrpc import JsonRPC
from st2common.runners.base_action import Action

class ExosCmd(Action):

def run(self, ipaddress=’10.68.65.81′, cmd=”):
“””
Run an EXOS command on the remote switch

Args:
– ip_address: The IP address of the switch
– username: login user name
– password: login password
– cmd: either a single EXOS command or list of EXOS commands

Raises:
– ValueError: On switch reponse being invalid
– RuntimeError: if switch cannot process the command

Returns:
dict: with EXOS CLI results
“””

jsonrpc = JsonRPC(ipaddress, self.config[‘username’], self.config[‘password’])
jsonrpc.cookie = self.action_service.get_value(‘cookie’)

try:
response = jsonrpc.send(cmd)
self.action_service.set_value(name=’cookie’, value=jsonrpc.cookie)
return response
except Exception:
sys.exit(1)

The actions folder contains action script files and action metadata files. See Actions and Workflows for specifics on writing actions. Since metadata files and workflow definitions can both be written as YAML, it’s good practice to put the workflow definitions in a separate directory. Note that the lib sub-folder is often used for storing common Python code used by pack actions.

ls lib
__init__.py  __init__.pyc  jsonrpc.py  jsonrpc.pyc

https://docs.stackstorm.com/reference/packs.html







Stackstorm

https://stackstorm.com/

https://exchange.stackstorm.org/

Network Essentials Pack:

sudo apt-get install build-essential libxml2-dev libxslt1-dev

st2 pack install network_essentials

Adding license:

curl -SsL -O https://stackstorm.com/bwc/install.sh && chmod +x install.sh
./install.sh –user=st2admin –password=Ch@ngeMe –version=2.6.0 –license=${EWC_LICENSE_KEY}

Action Reload:

st2ctl reload --register-actions

http://thedataplumber.net/ifttt-for-the-network-awesome/



Ubuntu Server

netstat -i

ifconfig

route -e

lspci

lspci | egrep -I –color ‘network|ethernet’

sudo apt-get install python-pip python-dev build-essential

sudo pip install –upgrade pip

sudo pip install –upgrade virtualenv

sudo -H pip install pyswitchlib

sudo apt-get install openssh-server

802.1Q

By default, all ports are set as untagged members of VLAN 1 with all ports configured as PVID = 1. Every VLAN is assigned a unique VLAN identifier (VID) that distinguishes it from all other VLANs. All incoming packets are assigned to VLAN 1 by the default port VLAN identifier (PVID =1). Untagged packets enter and leave the switch unchanged.

Untagged packets are marked (tagged) as they leave the switch through a tagged port, which is a tagged member of a VLAN. Untagged packets remain unchanged as they leave the switch through an untagged port, which is an untagged member of a VLAN.

VLAN Config Control on ERS

Specifies the VLAN configuration control options. The available options are:

• automatic—This selection automatically adds an untagged port to a new VLAN and automatically removes it from any previous VLAN membership. The PVID of the port is automatically changed to the VID of the VLAN it joins. Since the port is first added to the new VLAN and then removed from any previous membership, the Spanning Tree Group participation of the port is not disabled as long as the VLANs involved are in the same Spanning Tree Group.

• autopvid—This selection functions in the same manner as previous AutoPVID functionality. When an untagged port is added to a new VLAN, the port is added to the new VLAN and the PVID assigned to the new VID without removing it from any previous VLAN memberships. Using this option, an untagged port can have membership in multiple VLANs.

• flexible—This selection functions in a similar manner to disabling AutoPVID functionality. When this option is used, an untagged port can belong to an unlimited number of VLANs. Any new additions of an untagged port to a new VLAN does not change the PVID of that port.

• strict—The factory default, this selection restricts the addition of an untagged port to a VLAN if it is already a member of another VLAN. To add an untagged port to a new VLAN, the switch administrator must remove the port from all other VLANs of which it is a member before adding it to the new VLAN. The PVID of the port is changed to the new VID to which it was added.



Troubleshooting VSP or ERS

Useful commands:

show tech

Note:

On VSP search output for MAC address with colon format XX:XX:XX:XX:XX:XX.

For ERS search with hyphen format XX-XX-XX-XX-XX-XX.

Fine tuning ERS buffers (leave as default or assess device distribution first):

qos agent buffer <regular | large | maximum>

With this command you can set how much of the buffer a single port can use:

Regular    1 port may use up to 16% of the buffers       for a group of 12 ports.
Large    1 port may use up to 33% of the buffers       for a group of 12 ports.
Maximum    1 port may use 100% of the buffers for a       group of 12 ports.

To take effect a change of the buffer value you have to reboot your ERS switch.
